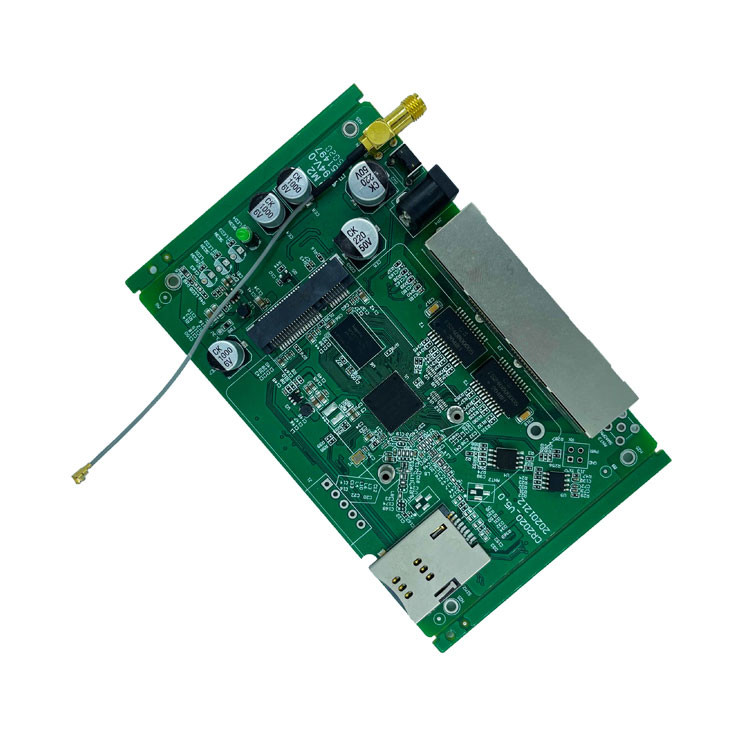

HASL OSP ENIG Finishing FR4 Prototype PCB Board

Brand Name : CKS

Model Number : CKS-Customized

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece/Pieces

Price : USD 0.5-5

Payment Terms : L/C, Western Union, MoneyGram, T/T

Supply Ability : 300000 Pieces per Month

Delivery Time : 90-120 work days

Packaging Details : 26CM*22.5CM*10.5CM

Copper thickness : 1-2 once

Base material : fr-4

Surface finishing : HASL,OSP,ENIG

Solder mask color : Green/blue/black/red/yellow/white

Service : One Stop Turnkey Service

Type : Electronic PCB Assembly

Name : China PCB Manufacturing /94v0 PCB Board Prototype with Rohs

Pcb assembly process : DIP. SMT PCB Assembly

Min. line width : 4mil,0.1mm(Flash Gold)/0.15mm(HASL)

Min. hole size : 0.25mm,0.1mm,0.2 mm

Contact Now

Prototype Pcb Manufacturing Printed Circuit Board Layout Service

We can manufacture Rigid PCB, Flexible, Rigid-flex, HDI board, High TG PCB;

Manufacture PCB board up to 32 layer, Raw material: Fr4, Rogers, Arlon, Teflon, Taconic, Nelco, Isola, Ceramic, Metal core.

Now our products apply far and wide in many fields such as communication, electronic equipment, and electrical appliance.

Our company is not only trying to give customers a good product but also pay attention to offering a complete and safe package. And here we prepare some personalized services for all the orders.

Common packaging:
PCB: Sealed bag, Anti-static bags, Suitable carton.
PCBA: Antistatic foam bags, Anti-static bags, Suitable carton.

Regular Cartons Specification.

Regular Cartons Specification	No. Dimension (LWH)
Small Size	33cm28.5cm18.5cm
Medium Size	44.5cm30cm15cm
Big Size	51.5cm32.5cm17.5cm

Customized Cartons:
Carton outside according to the requirements of customers printed the name of the customer address, mark, the customer needs to specify the destination and other information.

Flexible Volume Assembly Alternatives:

- Prototype PCB Assembly
- Low-Volume, High Mix PCB Assembly
- High-Volume PCB Assembly
- Consigned & Partial PCB Assembly
- Full Turnkey PCB Assembly
- Cable & Wire Harness Assembly
- Box Build Assembly Services

Q&A

Q1. What is needed for quotation?
PCB: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)

Q2. What file formats do you accept for production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)

Q3. MOQ?
There is no MOQ in CKS.We are able to handle Small as well as large volume production with flexibility.

Product Description

Product Name	PCBA customize
Surface Finishing	Gold Plating
Certificate	ROHS. ISO9001.
Pcb board material	Fr4 / Aluminum / Cu
Copper Thickness	0.5-3OZ
Board Thickness	0.8-2.0mm
Testing Service	Fly-probe/AOI/100%function Testing
PCB layer	SMT DIP Electronic Board

FR-4 Process capability
NO	Item	Craft Ability
1	Surface Finish	HASL,Immersion Gold,Gold Plating,OSP,Immersion Tin,etc
2	Layer	1-32 layers
3	Min.Line Width	4mil
4	Min.Line Space	4mil
5	Min.Space between Pad to Pad	3mil
6	Min.Hole Diameter	0.20mm
7	Min.Bonding Pad Diameter	0.20mm
8	Max.Proportion of Drilling Hole and Board Thickness	1:10
9	Max.Size of Finish Board	23inch*35inch
10	Rang of Finish Board′s Thickness	0.21-3.2mm
